RF Elements 60° Asymmetrical horn Antenna | HG3-TP-A60
RF Elements 60° Asymmetrical horn Antenna | HG3-TP-A60
R 6,193.80
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description

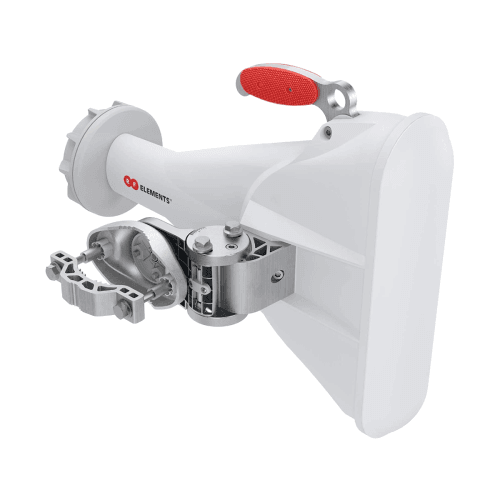

60° Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 60° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation.
Outstanding noise rejection and precision of radiation pattern favors 60°Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites. HG3-TP-A60 features our revolutionary TwistPort™ connector, a patent-pending twistand-lock waveguide port. TwistPort™ is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 60° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPort™ Adaptor.
PERFORMANCE
Frequency Range
5180 - 6000 MHz
Gain
17 dBi
Azimuth Beam Width -3 dB
H 45° / V 42°
Elevation Beam Width -3 dB
H 17° / V 16°
Azimuth Beam Width -6 dB
H 60° / V 60°
Elevation Beam Width -6 dB
H 25° / V 25°
Beam Efficiency**
95 %
Front-to-Back Ratio
27dB
TECHNICAL DATA
Antenna Connection
TwistPort™ - Quick Locking Waveguide Port
Antenna Type
Horn
Materials
UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Environmental
IP55
Pole Mounting Diameter
36-80 mm (we recommend as close to 80mm as possible)
Temperature
-35°C to +55°C (-31°F to +131°F)
Wind Survival
160 km/hour
Wind Loading
43 N at 160km/h
Mechanical Adjustment
± 25° Elevation, ± 20° Azimuth
Weight
4.8 Kg / 10.5 lbs – single unit*
6.5 Kg / 14.3 lbs – single unit incl. package*
Single Unit
Retail Box: 515 × 370 × 140 mm / 20.2 x 14.5 x 5.5 inch*
