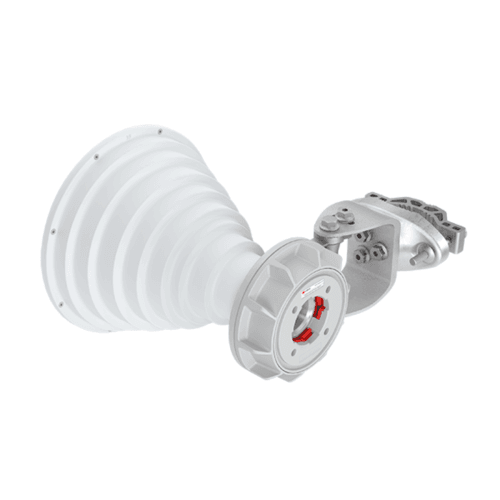

RF Elements Symmetrical Horn TP Antenna | HG3-TP-S30
RF Elements Symmetrical Horn TP Antenna | HG3-TP-S30
R 3,589.80
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Description
Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location. Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use.
Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.
PERFORMANCE
Frequency Range
5180 - 6400 MHz
Gain
18.4dBi
Azimuth Beam Width -3 dB
H 21° / V 21°
Elevation Beam Width -3 dB
H 21° / V 21°
Azimuth Beam Width -6 dB
H 30° / V 30°
Elevation Beam Width -6 dB
H 30° / V 30°
Beam Efficiency**
94 %
Front-to-Back Ratio
37 dB
TECHNICAL DATA
Antenna Connection
TwistPort™ - Quick Locking Waveguide Port
Antenna Type
Horn
Materials
UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
Environmental
IP55
Flame Rating
UL 94 HB
Pole Mounting Diameter
30-80 mm (we recommend as close to 80mm as possible)
Temperature
-30°C to +55°C (-22°F to +131°F)
Wind Survival
160 km/hour
Wind Loading
44 N at 160 km/hour
Mechanical Adjustment
± 25°
Weight
1.9 Kg / 4.1 lbs – single unit
3.3 Kg / 7.3 lbs – single unit incl. package
17.4 Kg / 38 lbs – carton (5 units)
Single Unit
Retail Box: 412 × 277 × 234 mm / 16.2 x 10.9 x 9.2 inch
5 Units
Carton Box: 1190 × 300 × 440 mm / 46.8 x 11.8 x 17.3 inch
